詳細說明
適用：

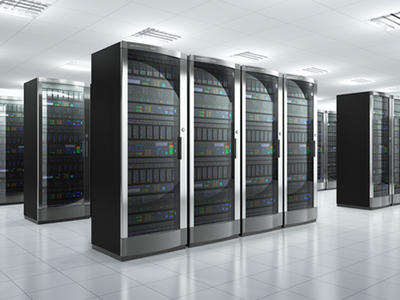

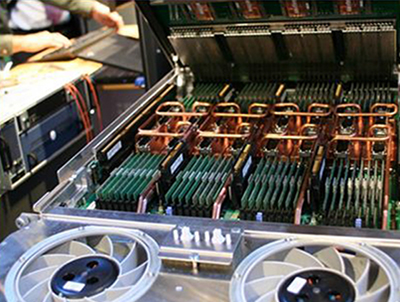

云端服務器，數據中心，半導體制程（如蝕刻機…），挖礦機…等設備的控溫與散熱媒介
直接接觸及浸沒式冷卻
液氣兩相變化冷卻運用
材料兼容性：
Fluorinert?電子氟化液與Novec?電子工程液對大多數的金屬及硬質塑料都具有良好的兼容性。但對于軟質塑料及橡膠材料，由于其內部包含的塑化劑等添加劑在長期接觸的情況下，
會溶解于Novec?電子工程液，導致材料惡化，所以在選擇密封材料時，應當選擇添加劑含量少的材料。（材料兼容性數據如表三，四，）
何謂Novec?電子工程液？
是根據3M特有的氫氟醚（hydrofluoroether）之化學研究，發展出一系列低全球暖化潛值的溶劑。
此液體安全且兼顧環保，其不可燃的特性，特別適用于要求嚴苛的電子業，包括精密清潔、潤滑稀釋劑與精密涂布的溶劑，也可以符合不同溫度的需求，運用于熱傳導的制造及測試應用。
Novec電子工程液可分為純化合物與共沸物混合流體，也可與某些低揮發性有機溶劑并存于溶劑制程中。
產品特色與優點
1.全球暖化潛值低（Low GWP）
2.不會破壞臭氧層（ODP=0）
3.毒性低、.不可燃、不導電
4.廣泛的液體溫度范圍
5.良好的物質兼容性
6.熱穩定
7.符合ROHS Ver.2.0與REACH規范，保證不含有禁用物質
| Fluorinert ? | |||||
|---|---|---|---|---|---|
| Unit | FC-72 | FC-770 | FC-3283 | FC-40 | |
| Boiling Point | ℃ | 56 | 95 | 128 | 155 |
| Pour Point | ℃ | -90 | -127 | -50 | -57 |
| Vapor Pressure | kPa | 30 | 6.6 | 1.4 | 0.43 |
| Heat of Vaporization | kJ/kg | 88 | 86 | 78 | 68 |
| Liquid Density | kg/m3 | 1.68 | 1.793 | 1.82 | 1.85 |
| Kinematic Viscosity | cSt | 0.38 | 0.79 | 0.75 | 1.8 |
| Specific Heat | kJ/kg*K | 1.1 | 1.038 | 1.1 | 1.1 |
| Thermal Conductivity | W/m-k | 0.057 | 0.063 | 0.066 | 0.065 |
| Surface Tension | nN/m(dyne/cm) | 10 | 15 | 15 | 16 |
| Solubility of Water in Fluid | ppm by weight | 10 | 14 | 7 | <7 |
| Solubility of Fluid in Water | ppm by weight | <5 | <5 | <5 | <5 |
| Dielectric Strength ,0.1" gap | KV | >40 | >40 | >40 | >40 |
| Dielectric Constant@1kHz | 1.8 | 1.9 | 1.9 | 1.9 | |
| Volume Resistivity | Ohm-cm | ~1015 | ~1015 | ~1015 | ~1015 |
| 3M Novec Fluids | ||||||||
|---|---|---|---|---|---|---|---|---|
| Unit | 7000 | 7100 | 7200 | 7300 | 7500 | 7600 | 649 | |
| Boiling Point | ℃ | 34 | 61 | 76 | 98 | 128 | 131 | 49 |
| Pour Point | ℃ | -122 | -135 | -138 | -38 | -100 | -98 | -108 |
| Vapor Pressure 25 ℃ | kPa | 65 | 27 | 14.5 | 5.9 | 2.1 | 0.96 | 40 |
| Heat of Vaporization | kJ/kg | 142 | 112 | 119 | 102 | 89 | 116 | 88 |
| Liquid Density | g/cm3 | 1.4 | 1.51 | 1.42 | 1.66 | 1.614 | 1.54 | 1.6 |
| Kinematic Viscosity | cSt | 0.32 | 0.38 | 0.41 | 0.71 | 0.77 | 1.1 | 0.4 |
| Absolute Viscosity | Cp | 0.45 | 0.58 | 0.58 | 1.18 | 1.24 | 1.65 | 0.64 |
| Specific Heat | kJ/kg*K | 1.3 | 1.183 | 1.22 | 1.14 | 1.128 | 1.319 | 1.103 |
| Thermal Conductivity | W/m-k | 0.075 | 0.069 | 0.068 | 0.063 | 0.065 | 0.071 | 0.071 |
| Surface Tension | nN/m(dyne/cm) | 12.4 | 13.6 | 13.6 | 15 | 16.2 | 17.7 | 10.8 |
| Solubility of Water in Fluid | ppm by weight | ~60 | 95 | 92 | 67 | 45 | 410 | 20 |
| Solubility of Fluid in Water | ppm by weight | <50 | 12 | <20 | <1 | <3 | <10 | <40 |
| Dielectric Strength ,0.1" gap* | KV | ~40 | ~40 | ~40 | ~40 | ~40 | ~40 | >40 |
| Dielectric Constant@1kHz | 7.4 | 7.4 | 7.3 | 6.1 | 5.8 | 6.4 | 1.8 | |
| Volume Resistivity | Ohm-cm | >108 | >108 | >108 | >108 | >108 | >1010 | >108 |
| Global Warming Potential | GWP | 420 | 297 | 59 | 210 | 100 | 700 | 1 |
| 與塑料兼容性 | 沸點下浸潤一周 | 室溫下浸潤一周 | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Novec? 7100 (61℃) | Novec? 7200 (76℃) | Novec? 7300 (98℃) | Novec? 7000 | Novec? 7100 | Novec? 7200 | Novec? 7300 | |||
| 苯乙稀 ABS | 體積變化(%) | -0.1 | 0 | +1.0 | 0.0 | 0.0 | 0.0 | +0.1 | |
| 重量變化(%) | -0.2 | -0.3 | +0.3 | -0.2 | 0.0 | -0.1 | -0.2 | ||
| 環氧玻璃 epoxy glass | 體積變化(%) | 0.0 | 0.0 | +1.0 | - | -0.1 | 0.0 | +0.1 | |
| 重量變化(%) | -0.1 | -0.1 | +0.5 | - | 0.0 | 0.0 | +0.1 | ||
| 尼龍 6 Nylon 6 | 體積變化(%) | -0.5 | -0.4 | -2.5 | -0.8 | -0.1 | +0.1 | -0.1 | |
| 重量變化(%) | -0.3 | -0.6 | -2.9 | -0.5 | 0.0 | -0.1 | -0.2 | ||
| 尼龍 66 Nylon 66 | 體積變化(%) | -0.4 | -0.4 | -2.3 | -0.1 | -0.1 | -0.1 | -0.2 | |
| 重量變化(%) | -0.4 | -0.7 | -2.8 | -0.2 | 0.0 | -0.1 | 0.0 | ||
| 聚對苯二甲酸丁二醇酯 PBT | 體積變化(%) | -0.4 | -0.3 | -0.8 | - | -0.5 | -0.3 | -0.3 | |
| 重量變化(%) | -0.3 | -0.2 | -0.5 | - | -0.3 | ||||
| 與橡膠兼容性 | 沸點下浸潤一周 | 室溫下浸潤一周 | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Novec? 7100 (61℃) | Novec? 7200 (76℃) | Novec? 7300 (98℃) | Novec? 7000 | Novec? 7100 | Novec? 7200 | Novec? 7300 | |||
| 氯丁二烯 CR | 體積變化(%) | -7.2 | -9.6 | -5.9 | -1.2 | -4.8 | -3.1 | -1.1 | |
| 重量變化(%) | -3.8 | -5.9 | -3.7 | -0.5 | -2.5 | -1.9 | -0.7 | ||
| 氯磺化聚乙烯 CSM | 體積變化(%) | -5.7 | -8.6 | -8.9 | -1.3 | -1.3 | -1.7 | -0.6 | |
| 重量變化(%) | -3.4 | -5.4 | -5.9 | -0.7 | -0.8 | -1.1 | -0.9 | ||
| 乙烯丙烯橡膠 EPDM | 體積變化(%) | -1.2 | -4.7 | -0.8 | +0.5 | -0.3 | -1.6 | +0.1 | |
| 重量變化(%) | +0.1 | -2.3 | +0.4 | +1.0 | +0.4 | -0.4 | +0.5 | ||
| 乙烯丙烯橡膠 EPDM(無塑化劑) | 體積變化(%) | +2.1 | +3.2 | - | - | +1.2 | +1.8 | - | |
| 重量變化(%) | +3.6 | +5.1 | - | - | +2.1 | +2.9 | - | ||
| 丁基橡膠 IIR | 體積變化(%) | -5.9 | -6.6 | -4.9 | -2.1 | -2.7 | -3.9 | -1.8 | |
| 重量變化(%) | -3.7 | -4.0 | -3.3 | -1.0 | -1.7 | -2.3 | -1.2 | ||
| 晴橡膠 NBR | 體積變化(%) | -7.9 | -7.8 | -8.6 | -0.9 | -2.3 | -2.5 | -1.5 | |
| 重量變化(%) | -4.5 | -4.6 | -5.4 | -0.3 | -1.2 | -1.3 | -0.9 | ||
| 天然橡膠 NR | 體積變化(%) | -6.8 | -8.7 | -2.9 | -0.5 | -4.6 | -6.1 | -0.9 | |
| 重量變化(%) | -3.3 | -4.5 | -1.5 | +0.2 | -2.3 | -3.1 | -0.4 | ||
| 乙烯基硅橡膠 VMQ | 體積變化(%) | +19.1 | +32.7 | +9.7 | +14.6 | +14.9 | +24.3 | +6.9 | |
| 重量變化(%) | +26.2 | +40.8 | +13.2 | +18.3 | +20.7 | +30.4 | +9.5 | ||
| 丁苯橡膠 SBR | 體積變化(%) | -3.7 | -4.4 | -3.9 | -2.0 | -2.6 | -3.5 | -2.0 | |
| 重量變化(%) | -1.7 | -2.2 | -1.9 | -0.6 | -1.1 | -1.6 | -1.0 | ||
| 聚胺酯橡膠 PU | 體積變化(%) | +5.5 | +4.2 | +1.7 | +5.9 | +2.6 | +1.9 | +0.3 | |
| 重量變化(%) | +7.6 | +5.6 | +2.5 | +7.6 | +3.5 | +2.5 | +0.5 | ||
| 二元系氟橡膠 FKM | 體積變化(%) | +37.2 | +28.9 | +29.3 | +35.1 | +20.7 | +8.7 | +2.6 | |
| 重量變化(%) | +31.7 | +22.9 | 26.6 | +27.9 | +17.7 | +6.9 | +2.3 | ||
| 三元系氟橡膠 FKM | 體積變化(%) | +118.3 | +99.7 | +80.8 | +76.4 | +117.8 | +96.6 | +80.6 | |
| 重量變化(%) | +95.5 | +75.3 | +70.7 | +56.5 | +95.4 | +73.2 | +71.3 | ||
